Rolyan Splinting provides a comprehensive
range of sheet materials, pre-cuts and accessories.

ABOUT ROLYAN SPLINTING

Rolyan Splinting's range aims to meet the busy clinician’s ever changing needs.

BROADEST RANGE OF
SPLINTING MATERIALS

With the broadest range of high-quality splinting materials in the industry, Performance Health makes it easy to find a product for every splint, every therapist and every experience level.

KNOWLEDGEABLE
CONSULTANTS

From our comprehensive online materials to our knowledgeable consultants, Performance Health brings you the personal support, expertise, and information you need to choose the right products for your patients.

A VARIETY OF CONTINUING EDUCATION COURSES

Performance Health Academy provides a variety of continuing education courses specific to splint fabrication. These courses cover a full range of experience levels and specialty splinting techniques.

SPLINTING CHARACTERISTICS

Many clinicians still use the day-to-day terms of static, dynamic, static progressive or serial static.
These are defined below as they are most commonly used in workplaces today.

STATIC

A static splint has no moving parts & may be supportive, corrective or protective. Often used to support normal hand arches.

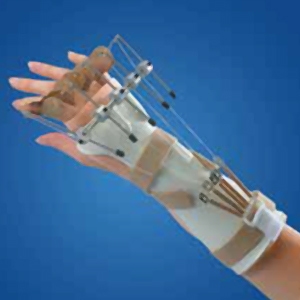

DYNAMIC

A dynamic splint consists of a static base onto which levers, springs or pulleys may be attached.

STATIC PROGRESSIVE

These splints involve the application of a low-load prolonged stretch at the end of the available movement.

SERIAL STATIC

Serial static splints position soft tissues towards the end of their available range to help increase tissue length.

SPLINTING
CHARACTERISTICS
BREAKDOWN

THE EXTENT TO WHICH A MATERIAL RESISTS PULLING OR STRETCHING WHEN HEATED

• Minimum: Achieve intimate fit and Very light handling required
• Moderate: Achieve exact fit and Moderate handling to pull and hold material in place
• Maximum: Achieve good fit, Requires firm handling and Ideal for larger splints

THE EASE WITH WHICH A MATERIAL CONFORMS TO A SURFACE WHEN IT IS HEATED

A high degree of drape enables a precise fit with minimal handling = increased comfort and reduced pressure areas
High drape materials are preferred by the skilled splinter who is confident with their handling skills
Minimal drape is often preferred when splinting larger areas as the material is easier to handle and provides more stability

THE DEGREE TO WHICH A MATERIAL WILL STICK TO ITSELF WHEN HEATED

UNCOATED:
Effective bonding without the need to treat/prepare surface
Bond to themselves to form a permanent bond
Useful when adding outriggers, accessories or reinforcing strips

COATED:
Allows material to temporary bond when warm
Once cool the bond is not permanent
Coating may be removed to create a permanent bond with spirits or by safely scratching the splint surface
Often easier to handle
If making a long term splint, coated materials may be preferable as they are easier to clean (less porous)

1/16 Thinkness

Half the weight of 1/8” material
Easy to cut when cold
Ideal for paediatrics, finger splints and hand-based splints

1/12 Thickness

Lightweight with moderate support
Easy to cut when cold
Ideal for paediatrics, finger, handbased splints and other areas requiring lightweight support.

3/32 Thickness

Lightweight with moderate support
Minimises bulkiness
Perfect for a wide range of static and dynamic splints or progressive splints where less weight is desired (i.e. arthritis, thumb, hand, wrist and small area splints).

1/8 Thickness

Traditional thickness that provides stability and firm support
Well-suited for positioning and holding joints, aiding abnormal tone, contractures and fracture bracing.
Ideal for static, dynamic and progressive splinting of upper and lower extremities.

3/16 Thickness

Maximum rigidity
Ideal for body jackets, abnormal tone splints, lower extremity splints and fracture braces.

SOLID:
Maximum support.

PERFORATED:
Perforated (1%, 2% or 2.5%) for slight ventilation and added comfort without compromising rigidity.
  Tip:   Material softens quicker when heated.

ULTRA-PERF, OPTI-PERF, SUPER-PERF:
UltraPerf (13%), OptiPerf (19%), Lightweight provides greater ventilation for increased comfort and compliance.
SuperPerf (38% or 42%) for lighter weight, exceptional ventilation and greater comfort and compliance.
  Tip:   For additional support, select a thicker material, with higher perforations.
  Tip:   Higher perforations soften quicker when heated and cool faster.

SPLINTING TIPS & INSTRUCTION VIDEOS

Rolyan's diverse and comprehensive range of thermoplastic materials reflect the varying needs of clinicians today.

Thumb Hole
Wrist Cock-up Splint

Forearm Based
Short Thumb Spica

Functional
Position Spica

Techniques for
Efficient Edge Finishing

Static
Finger Orthotic

Static Elbow
Orthosis Fabrication

RESEARCH, EXERCISES, EDUCATION & INSIGHT

At PHA you can find references, articles, protocols and outcomes to support evidence-based solutions and evidence-based practice.
