Rolyan Smart Splint Bath

Rolyan Performance Preferred
$3,025.00
Product Symbol Definitions
  • Latex Product

    This product contains natural rubber latex which may cause allergic reactions.

  • Hygiene Product

    For health reasons we are unable to accept returns or exchanges of hygiene products.

  • Product Requires Truck Delivery

    This item is considered dimensionally oversized parcel or requires truck delivery. Additional shipping charges will be calculated at time of order.

  • Product Contains Hazardous Materials

    This item is classified as hazardous materials. Can ship ground only - restricted from air. Additional shipping surcharge will be added at time of order.

  • Bariatric Product

    This product has a Bariatric rating.

  • If you have any questions please contact customer support at: 1.800.323.5547 or Email at:

Item #
7102759
Catalog #
7102759

  • Modern, easy-to-use splint bath that quickly heats water for splinting material preparation
  • Two built-in methods of disinfection for patient safety
  • Thermoset material base, with a stainless-steel hinged lid, low water sensor, and digital LED touch display
More Info
Delivery Over 99% Order Accuracy.
Checkout

Modern Looks and Features

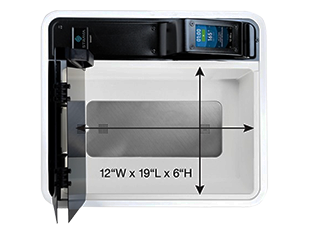

Made of a thermoset material known for its insulation, flammability resistance, and durability, this state-of-the-art splint bath is the first of its kind. The full-color, beveled, touch screen interface displays precise water temperatures, heating time, and menu options; making it easy to understand and use. A stainless steel hinged bi-fold lid provides easy access from three sides. With the inside tub dimension of 12” x 19” x 6”, it’s large enough for all your splinting needs.

Innovative Features

The internal heat exchanger is immersed directly in the water basin and heats water in less than 30 minutes, with minimal thermal lag and uniform heat distribution. Auto on/off settings preheat the water to reach a set temperature on a set day and time. Ready when your clinic opens and energy efficient at night when not in use. Preset settings are factory installed temperature and time suggestions that are specific to the thermoplastic selected, and custom thermoplastic settings allow the user to customize their own settings. A built-in water level sensor turns off the pan when the water level is too low, and audio and visual alerts notify you when heating time is done.

Dual Disinfection

The only splint bath designed with two built-in methods of disinfection, UV-C germicidal kill, and high-heat sanitation cycle, to keep patients safe and meet regulatory compliance. An internal pump cycles water over the UV light to effectively sterilize microbes. The high heat sterilization cycle increases the water temperature to an extreme high heat for 5 minutes to kill microbes. The two methods combined have a 99.9% kill rate of introduced microorganisms, including COVID-19.

Details
Brand Rolyan
Shipping Weight 43.870000
Performance Preferred Yes
Is Temporarily Discontinued Yes
  • Modern, easy-to-use splint bath that quickly heats water for splinting material preparation
  • Two built-in methods of disinfection for patient safety
  • Thermoset material base, with a stainless-steel hinged lid, low water sensor, and digital LED touch display
More Info

Rolyan
Smart Splint Bath

Advanced splint bath precisely engineered to remove the guesswork and prevent cross contamination.


Made in the U.S.A.

Innovative Design. The First of Its Kind!

Made of a thermoset material known for it’s insulation, flammability resistance and durability,
making this state-of-the-art splint bath the first of it’s kind!

Automatic Dual Disinfection






Water Circulates
through ultra violet-C germicidal kill light at 254nm. Widely used to disinfect drinking water safely and effectively.






High-Heat Disinfection
heats the water to approximately 185° F (85° C) to kill microbes.

Smart Splint Bath is Always On-Time!

Automatically preheats the water to reach a set temperature on a set day and time. Ready when your clinic opens and energy efficient at night when not in use.



Automatic On/Off
Automatically preheats the water to reach a set temperature on a set day and time. Ready when your clinic opens and energy efficient at night when not in use.




More Advanced than Traditional Splint Baths
Traditional wire-wound heating elements coil beneath the unit producing thermal lag, uneven heating (hot and cold spots), and inaccurate temperatures.




Heats Up in Less Than 30 Minutes with Even Distribution
Rolyan’s unique internal heat exchanger is immersed directly in the circulating-water basin, ensuring fast heating, minimal thermal lag, and uniform heat distribution, all without losing heat while the lid is open.


Accurate Temperature
An internal temperature control system allows temperature monitoring in real-time at extremely close tolerances (+/- 2° F)

Read What Other Have to Say

Finally, there’s a product designed from the ground up to be a splint bath!
I especially like the ability to create a custom temperature setting for splint materials that have a higher resistance to stretch, such as Aquaplast T. The extra 10° degrees allows me to have more working time when making a challenging splint.

When I use highly conformable material, like Polyform, the bath eliminates hot-spots, making handling of the material predictable and more successful.  I like knowing that patients are safer, with the UV light sterilization, and the additional high heat sterilization at night gives me additional confidence that any contaminants are being destroyed.

The auto on/off feature lets you set the time that you need the bath turned on in the morning, so there is no waiting for it to heat. Walk in the door, and it’s ready to go!  It’s a great time saver, and the right tool to do the job right.


Bruce Curtis, OTR

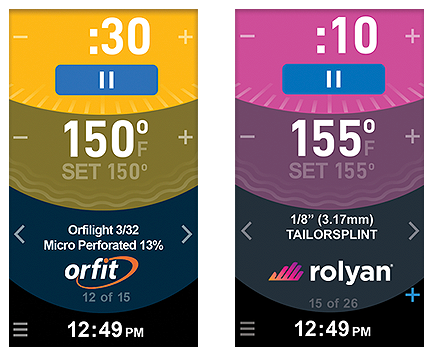

Create Your Own Custom Presets

Choose pre-loaded thermoplastics settings from top manufactures’ like Rolyan, Orfit, North Coast, Manosplint and Allard. Includes time and temperature recommendations for the best handling and results of their materials.

Plus, you can create your own custome pre-sets.

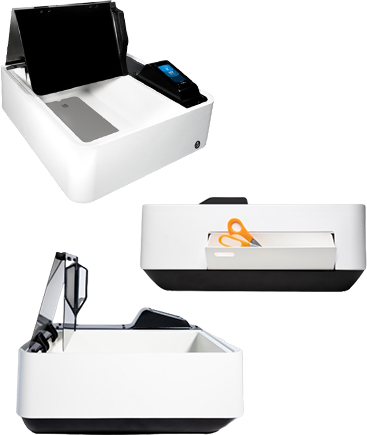

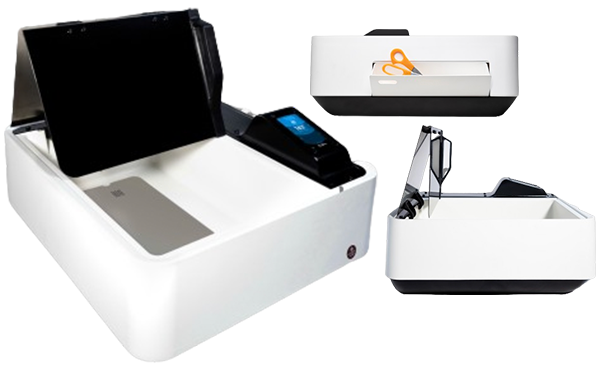

Rolyan Smart Splint Bath Features

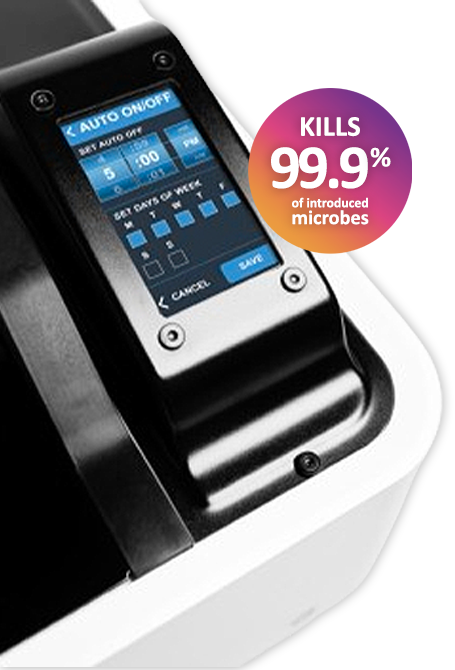

Always on Time
Auto On/Off automatically preheats the water to reach a set temperature at a set time any day of the week.

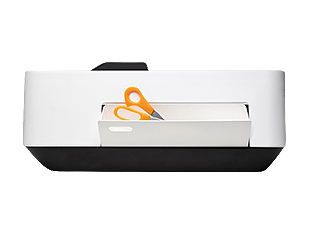

Convenient Side Storage
Built-in hidden tray is ideal for
holding your splinting tools.

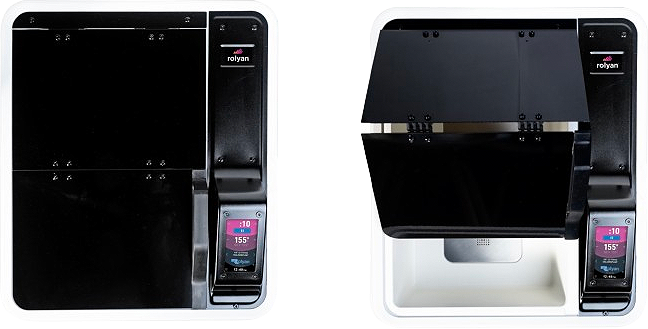

Stainless Steel Bi-Fold Lid
Perfect for easy access from three sides
- fully retractable bi-fold lid fits
under most cabinets.

Compare the Rolyan Basic & Smart Splint Bath

  BASIC SMART
• Digital Touch Interface X X
• User Set Time and Temperature X X
• Low Water Sensor X X
• Audio/Visual Alerts X X
• Rapid Water Evacuation X X
• Side Panel Storage X X
• Bi-Fold, Powder-Coated, Stainless-Steel Lid X X
• Raised Bevel Display X X
• Auto On/Off X X
• Quick Heating Internal Heat Exchange X X
• UV-C Germicidal Kill --- X
• High-Heat Sanitation Cycle --- X
• Preset Thermoplaastic Material Settings --- X
• Customizable Settings --- X
• Dual Filtration --- X
