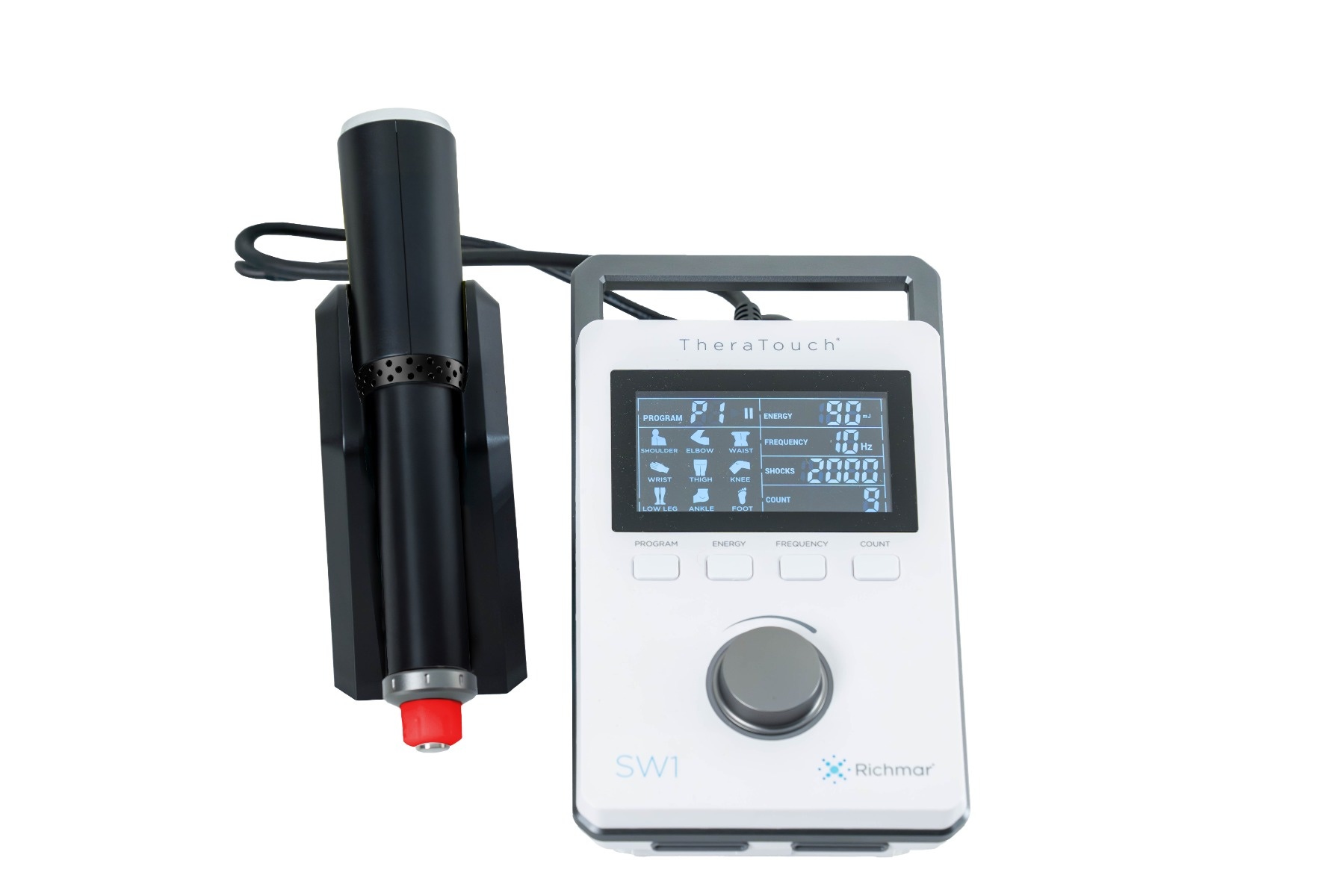

TheraTouch SW1

Radial Pressure Wave Therapy Device

The TheraTouch SW1 is Richmar’s first radial pressure wave device, designed to deliver high-energy mechanical pulses to targeted areas of the body. These radial pressure waves are transmitted through an ergonomic handpiece and applicator, penetrating up to 35mm into tissue to effectively treat a variety of musculoskeletal conditions. Shockwave therapy with the SW1 can support tissue activation, promote bone healing, relieve muscle aches and pain, enhance blood circulation, and more—making it a powerful tool for both recovery and rehabilitation.

Wide Range of Preset Protocols

The TheraTouch SW1 features an intuitive touchscreen interface that makes it easy to operate. It includes a wide range of preset protocols, thoughtfully developed based on ISMST (International Society for Medical Shockwave Treatment) Guidelines and clinical research. In addition to these presets, the device offers a manual mode, allowing users to customize treatment parameters, select specific applicators, and save personalized protocols to a favorites list. The 11 preset body part protocols cover common treatment areas, including the wrist, elbow, knee, shoulder, neck, thigh, ankle, upper back, lower back, lower leg, and foot.

Complete, Portable Shockwave Therapy System

The SW1 includes everything required for effective treatment, featuring multiple interchangeable applicators to suit individual patient needs. It also comes with a sleek carrying case and a rechargeable battery that provides up to three hours of use, making it easy to transport and ideal for on-the-go treatments.

TheraTouch SW1 Specifications:

• Power Supply: 100-240V, 50/60Hz, 200VA
• Lithium-Ion Battery: DC 22.2V, 2200mAh
• Frequency: 1Hz – 22 Hz
• Energy: 60 – 185mJ, 1-4 bars
• Main Unit Dimensions: 11.46” x 6.69” x 4.78”
• Handpiece Dimensions: 10.2” x 4.48”
• Main Unit Weight: 4.63 lbs
